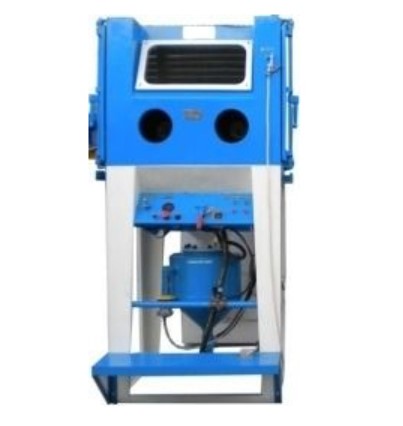

Abrasive Blasting Cabinets

Name: Abrasive Blasting Cabinets
Brand: KUSHAL UDHYOG
Price: 500000 INR
Availability: InStock

Price 500000 INR/ Unit

Get a Price/Quote

MOQ : 1 , , Unit

Abrasive Blasting Cabinets Specification

Shape
Rectangular

Phase
Single & Three Phase options

Product Type
Abrasive Blasting Cabinet

General Use
Surface cleaning, rust removal, paint stripping, surface preparation

Material
Heavy-duty Steel Body

Type
Suction type, Pressure type

Capacity
Large chamber (customizable capacities available)

Weight (kg)
Approx. 200 kg

Computerized
No

Automatic
Semi-Automatic

Touch Screen
No

Control System
Manual control with foot pedal and control switches

Surface Treatment
Powder Coated Finish

QC System
Standard factory quality control inspection

Tolerance
High precision, 0.05 mm

Drawing
Available upon request

Voltage
220V / 380V (customized options available)

Dimension (L*W*H)
Approx. 1200 x 900 x 1750 mm (customized sizes available)

Feature
Heavy duty, corrosion resistant, built-in dust collector, viewing window, ergonomic design

Color
Blue / Grey (custom colors available)

Abrasive Blasting Cabinets Trade Information

Minimum Order Quantity
1 , , Unit

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Telegraphic Transfer (T/T)

Supply Ability
8 Units Per Week

Delivery Time
4-6 Week

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About Abrasive Blasting Cabinets

Abrasive Blasting Cabinets

Works on the Direct Pressure principle of abrasive blasting. Abrasive is pressured in a pressure vessel and imparted forcefully to the nozzle. The media attains high velocity and thus the blasting is intensive.Abrasive particles acquire high velocity as compared to other principle, giving high production output. These Abrasive Blasting Cabinets is best recommended for removing thick and hard deposits, debarring and deflashing of hard metal parts using medium to coarse grain of abrasive particles. Shot peening and stress relieving are performed to medium and high peening intensity.Three standard models are available namely, KUP-91/82, and KUP-120/90 and KUP-150/120.

Technical Details:

MODEL	SUCTION BLASTING			PRESSURE BLASTING			WET BLASTING
MODEL	KUS-60/60	KUS-91/82	KUS-120/90	KUP - 91/82	KUP- 120/90	KUP-150/120	KUW-91/82	KUW-120/90
Height Width Depth	600 600 600	775 910 820	900 1200 900	775 910 820	900 1200 900	900 1500 1200	775 910 820	900 1200 900
Fan Motor	0.5 HP	1.0 HP	1.5 HP	1.0 HP	1.0 HP	1.5 HP	0.5 HP	1.0 HP
Fan Capacity	200 cfm	400 cfm	600 cfm	500 cfm	500 cfm	800 cfm	200 cfm	400 cfm
Filter Cloth	1.0 sqm	2.0 sqm	4.0 sqm	7.5 sqm	7.5 sqm	10 sqm	-	-
Air Injector (mm)	2 / 3	3 / 4	3 / 4	-	-	-	3	4
T.C.Nozzle (mm)	6 / 8	6 / 8	8 / 10	5	5	5	8	10
Blast Hose (mm)	19	19	19	19	19	19	19	19
Air Consupmtion	21 cfm	21 cfm	34 cfm	38 cfm	38 cfm	38 cfm	21 cfm	34 cfm
Air CompressorRequired	7.5 H.P.	7.5 H.P.	10.0 H.P.	10.0 H.P.	10.0 H.P.	10.0 H.P.	7.5 H.P.	10.0 H.P.
Abrasive Capacity	1.0 cft	1.0 cft	1.5 cft	1.0 cft	1.5 cft	1.5 cft	1.5 cft	1.5 cft

Technical Details

Effortless Operation and Maintenance

Featuring manual control switches, a responsive foot pedal, and easy-access service doors, our blasting cabinets streamline both operation and upkeep. The semi-automatic design allows users to precisely control media flow without complicated setup. Routine cleaning and maintenance are swift and straightforward, minimizing downtime and extending machine life.

Versatility for Multiple Applications

Compatible with a wide range of abrasive mediasuch as glass beads, aluminum oxide, steel grit, and sandthese cabinets are suitable for detailed surface preparation, rust removal, and paint stripping. Their customizable chamber sizes and adaptable voltage options make them ideal for a variety of industrial uses, from automotive refinishing to aerospace component restoration.

FAQs of Abrasive Blasting Cabinets:

Q: How do I operate the abrasive blasting cabinet safely and efficiently?

A: Operate the cabinet using the manual control system with foot pedal and dedicated switches. Always wear the provided heavy-duty blasting gloves, ensure the chamber door is secured, and use the integrated LED lighting for enhanced visibility. Regularly inspect the tempered glass viewing window and keep the filter in the cyclone dust collector clean for optimal performance.

Q: What abrasive media can be used with this blasting cabinet?

A: This cabinet accommodates various abrasive media types including glass beads, aluminum oxide, steel grit, and sand. Selecting the correct media depends on the surface material, desired finish, and the specific cleaning or preparation process required.

Q: When is it necessary to perform maintenance on the blasting cabinet?

A: Routine maintenance should be conducted as recommended in the manual, typically after each major use or project. Regular tasks include emptying the dust collector, inspecting the filter, cleaning the chamber, and checking the integrity of gloves, nozzles, and window protection film.

Q: Where can these cabinets be used most effectively?

A: They are ideal for industrial environments such as automotive workshops, aerospace maintenance facilities, metal fabrication shops, and restoration sites. Their rugged design and built-in dust collection make them suitable for both small-scale operations and large production lines.

Q: What is the process for changing the abrasive media or cleaning the cabinet?

A: To change media, ensure power is off, open the easy-access service doors, and carefully remove used media. Clean the chamber and refill with the desired abrasive. Empty and service the built-in cyclone dust collector as needed. Always follow the safety guidelines in the user manual.

Q: How does the integrated dust collector benefit operations?

A: The built-in cyclone dust collector efficiently removes airborne particles, helping maintain clear visibility and a cleaner working environment. This reduces health risks, minimizes clean-up time, and extends the life of vital cabinet components.

Q: What are the advantages of the high-efficiency ceramic nozzle and tempered glass window?

A: The ceramic nozzle provides precise abrasive flow and superior wear resistance, ensuring long-term efficient blasting. The tempered glass viewing window with protective film enhances operator safety and visibility while resisting scratches and damage during extended use.
